PITOT HASA

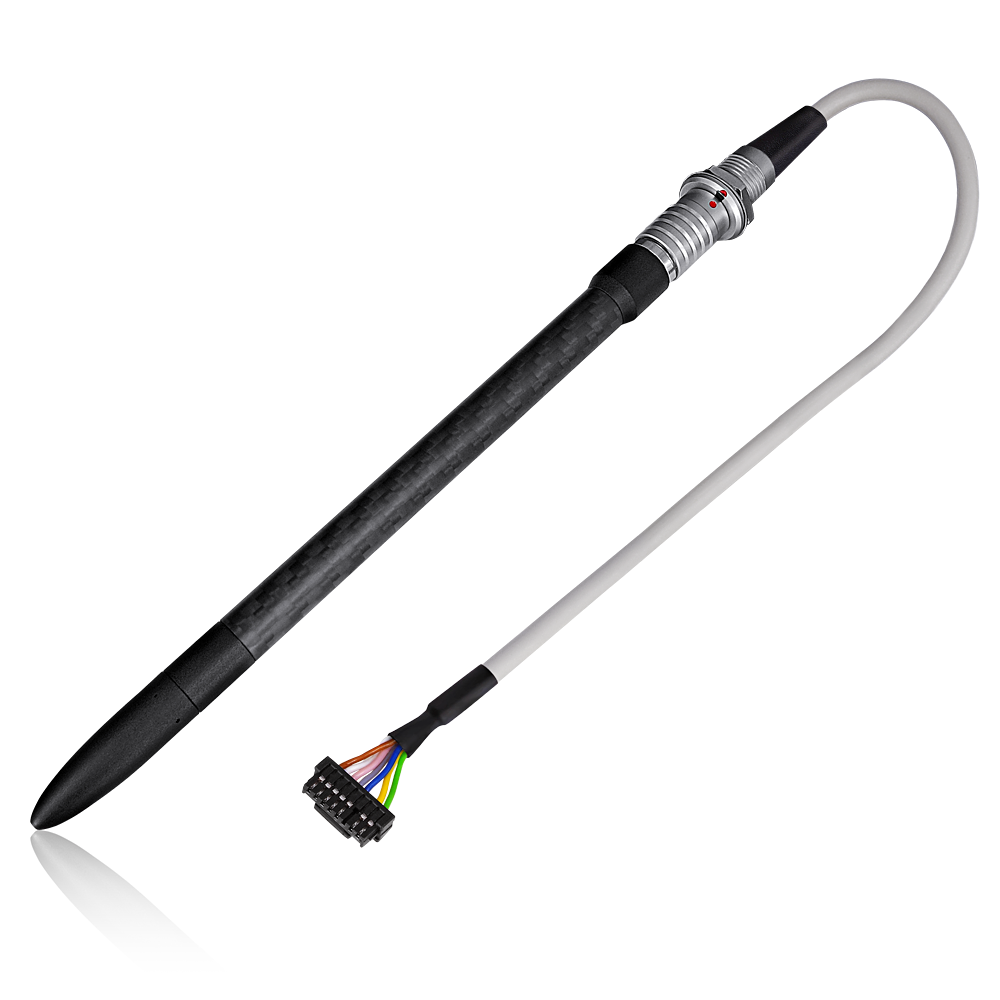

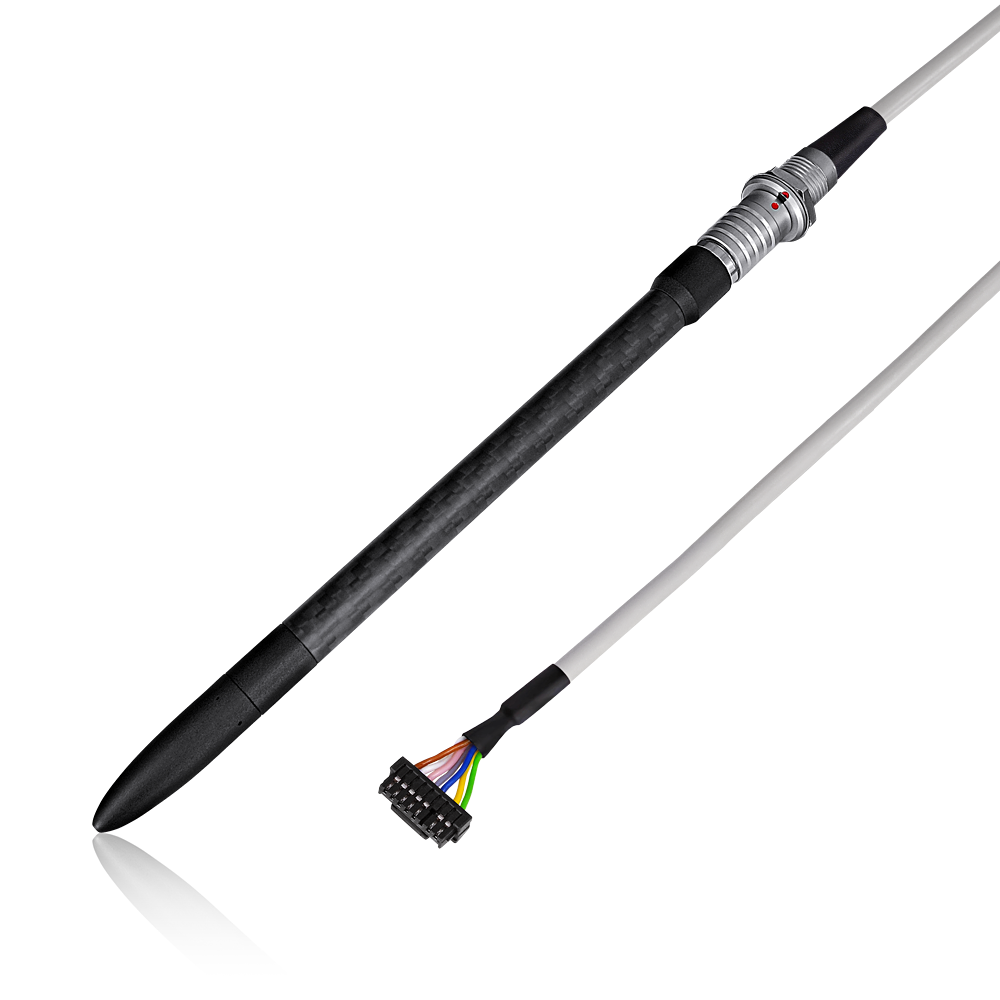

The Pitot HASA (Heated AirSpeed Altitude) is a plug-and-play solution for measuring airspeed and barometric altitude. The sensor probe features two pressure sensors, a ceramic heater, and an integrated temperature sensor.
CONTACT US FOR LEAD TIME AND CURRENT PRICING! PREORDERS AVAILABLE!
Accurate airspeed data isn't optional—it determines how well an autonomous aircraft performs.
Every autonomous aircraft depends on reliable air data for stable flight, accurate navigation, and consistent mission performance. When operating in demanding environments, precision alone isn't enough—reliability is equally critical.
We're pleased to introduce the PowerBox Systems Industrial Pitot HASA, a professional heated air data system now available to customers throughout the Americas.
Designed for commercial, industrial, and defense UAV applications, the Pitot HASA integrates high-precision airspeed and barometric altitude measurement with an intelligent ceramic heating system to deliver dependable performance across a wide range of operating conditions.
Key Features
• Heated Pitot system with active temperature regulation
• High-precision MEMS pressure sensors
• Native DroneCAN interface
• Fully integrated electronics within the probe
• Lightweight aluminum and carbon fiber construction
• Wide 6–28V heater operating range
• Airspeed measurement up to 850 km/h (528 mph)

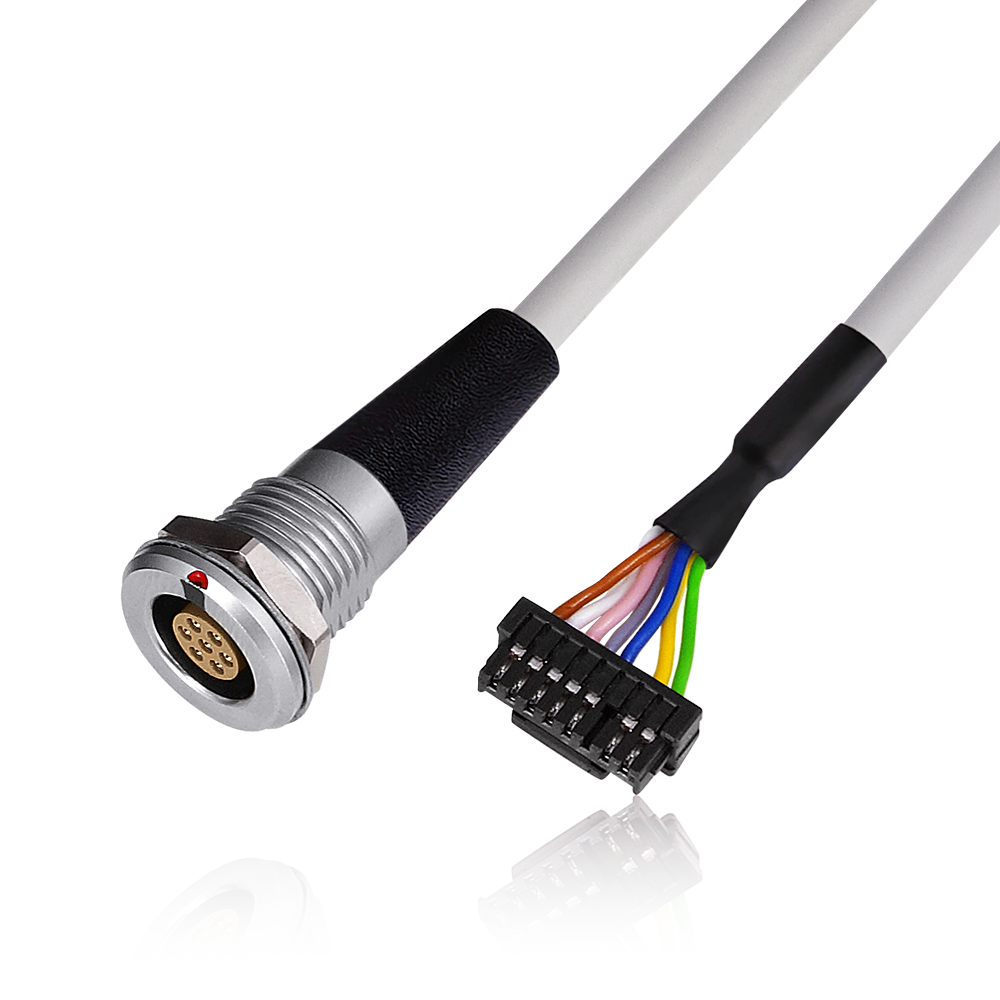

• Push-pull connector for rapid installation and maintenance
Whether you're developing ISR platforms, Group 1–3 UAS, loitering munitions, research aircraft, or commercial autonomous systems, the Pitot HASA delivers the accuracy, reliability, and ease of integration expected from a professional air data solution.
The PowerBox Systems Industrial Pitot HASA is available through PowerBox Systems Americas for customers throughout North, Central, and South America, and through PowerBox Systems Industrial for customers in all other regions.
| Supported bus systems | DroneCAN, PowerBox P²-BUS, others on request |
| Operating voltage control system | 4.0V – 9.0V |
| Operating voltage heating system | 6.0V – 28.0V |
| Current drain control system | max. 35mA |
| Current drain heating system | Voltage / 9 Ohm |
| Heating-up time 6V | 120 s (-40°C to +40°C) |
| Heating-up time 24V | 10 s (-40°C to +40°C) |
| Speed | max. 850 km/h |
| Resolution speed | 1 km/h (from 10 km/h) |
| Resolution altitude | 0.1 m |
| Dimensions | 10 mm x 165 mm |
| Weight | 48 g (incl. interface) |
| Temperature range | -40°C to +85°C |
+ Plug-and-play heated Pitot measurement system
+ Precise measurement of airspeed, altitude, rate of climb and distance
+ Push-pull connector system for easy disconnection from the aircraft
+ High-performance ceramic heating element
+ Temperature-controlled heating
+ Galvanically isolated circuit for the heater
+ Wide voltage range for the heater: 6.0V–28.0V
+ Pressure sensors with the latest MEMS sensor technology
+ Speed measurement up to approx. 850 km/h with 1 km/h resolution
+ Complete electronics fully integrated into the Pitot tube
+ Fast digital filters for delay-free data acquisition without noise
+ DroneCAN interface for easy integration
+ CAN bus messages can be enabled and disabled via software
+ Adjustable data rate for CAN messages
+ CAN termination can be enabled via software
+ Lightweight aluminum/carbon construction
+ Supported RC systems: PowerBox P²BUS
+ Parameter settings via CAN bus or Mobile Terminal
+ Updatable via the Mobile Terminal
