Mounting frame MPX male connector9011

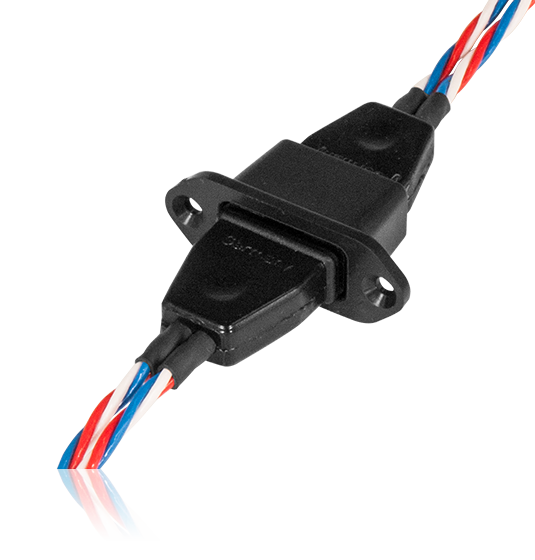

The PowerBox MPX mounting frames are a new design, and accurately accommodate all M6 and MPX connectors. Their special feature: they also fit all PowerBox MPX leads which are encapsulated using the hot-melt process. This includes all PIK power leads with conductor cross-sections from 0.35mm² to 2.5mm², and - of course - all MPX One4two wing connectors.

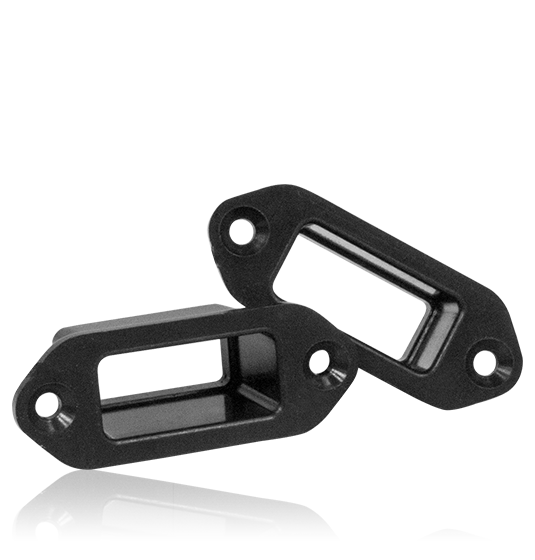

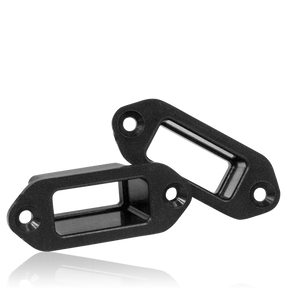

Two different frames are available, one each to suit plugs and sockets; this guarantees a one hundred percent perfect fit. The mounting frames are moulded in solid ABS, enabling the MPX connectors to be fixed with a drop of cyano to ensure that they are not pulled out when the connectors are separated.

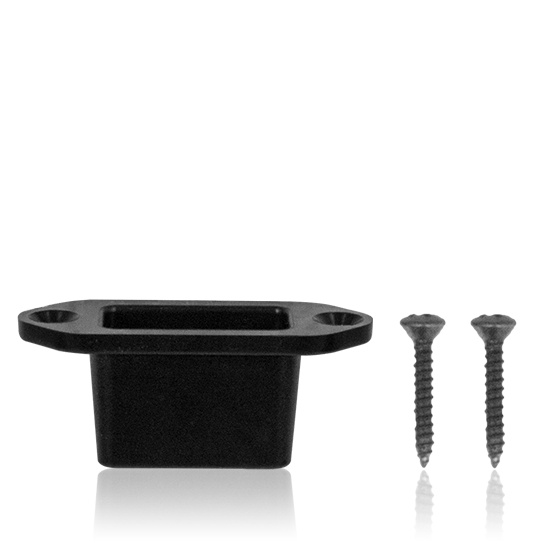

Each set contains 6 mounting frames for plugs or sockets, together with the 12 screws required.
