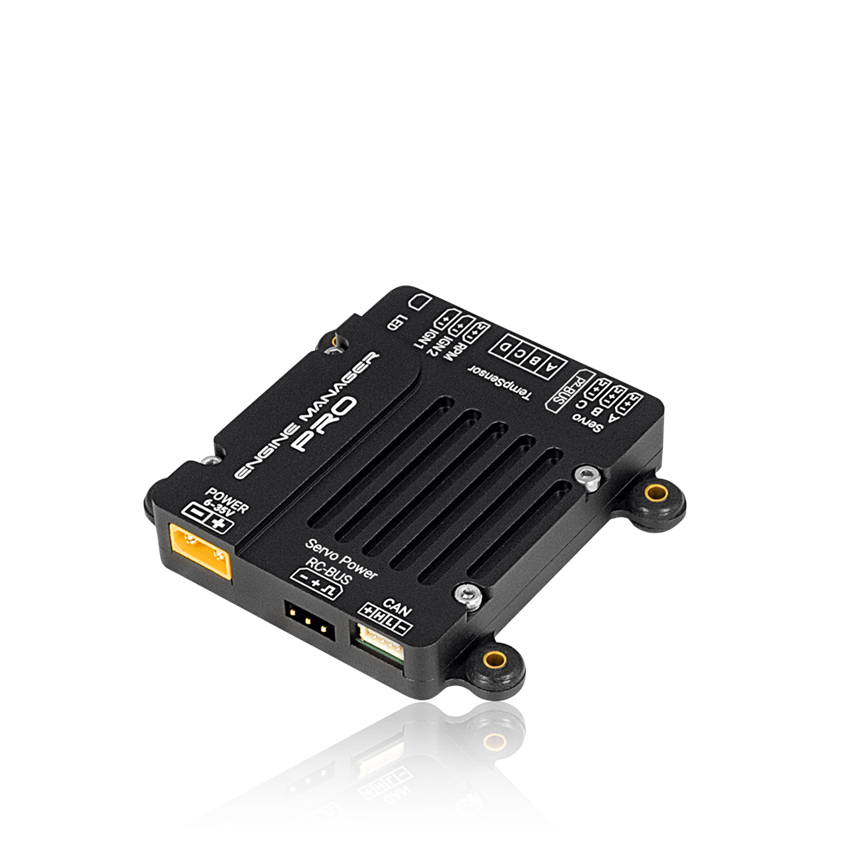

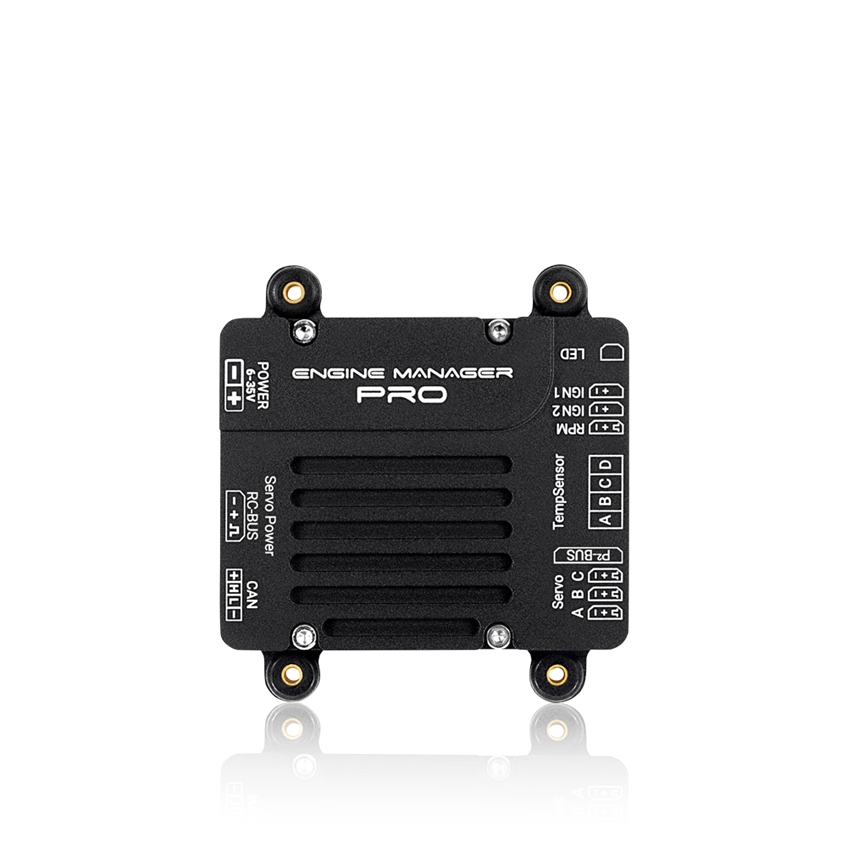

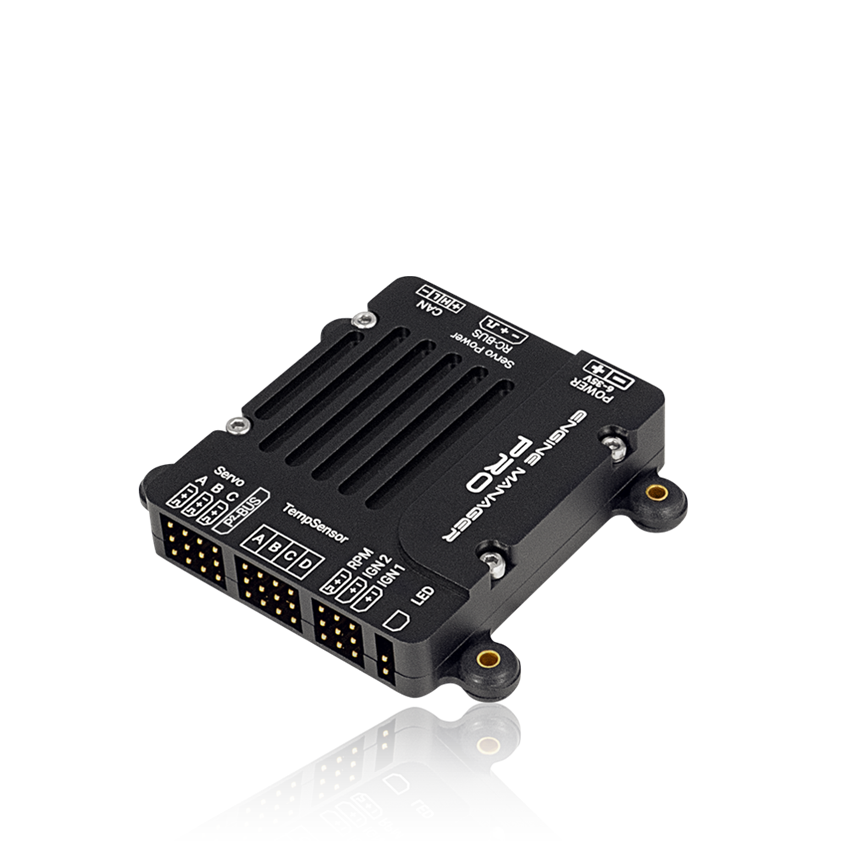

Powerbox Engine manager Pro
The Engine Manager Pro handles all tasks related to controlling and monitoring a gas engine!
The Engine Manager Pro handles all tasks related to controlling and monitoring a gas engine. Its primary functions include switching and power supply for up to two ignitions. The ignition can be supplied with up to 35V, while the output can be set to 6.0V, 8.0V or 12.0V. A double LC filter and overvoltage protection completely decouple the ignition supply from the rest of the on-board electronics.
In addition, three servo outputs are available, which are controlled via the CAN bus input and/or the RC bus input. These can be used to control the throttle, choke, or starter motor, for example. The CAN bus and RC bus are linked in such a way that if one system fails, the other automatically takes over control.
The telemetry data available includes speed, 4× temperature, voltage and current of the ignition input. A flow sensor can be connected via the P²-BUS input as an option, which can also be used to measure the remaining tank content.
All telemetry data is available via DroneCAN and the RC protocols P²-BUS, EX-BUS and S.BUS2.
Parameterisation can also be carried out via DroneCAN, the aforementioned RC protocols or the Mobile Terminal (Order No. 9025). The Mobile Terminal can also be used to perform updates, save settings and transfer them to other devices.
FEATURES
+ Control for two ignitions
+ Input voltage up to 35V
+ Output voltage selectable between 6.0V/8.0V/12.0V
+ Effectively suppresses interference from the ignition
+ Control via DroneCan and/or P²-BUS/EX-BUS/S.BUS
+ DroneCan/RC bus operate as redundant signal sources
+ 3 servo outputs for throttle/choke and starter motor
+ Telemetry for DroneCan and P²-BUS/EX-BUS/S.BUS2
+ 4x temperature, speed, current/voltage
+ P²-BUS connection for additional external sensors
+ Updateable with the Mobile Terminal
SPECS:
Operating voltage 6,0 to 35,0V
Current drain during Power On condition: 25mah
Standby consumption 0.1 Ma Max.
Max Current. 2.5A
Output voltage 6.0 V / 8.0 V / 12.0 V
Signal input DroneCan, P²-BUS, EX-BUS, S.BUS2
Supported telemetry systems DroneCan, P²-BUS, EX-BUS, S.BUS2 Telemetry data
4x Temperature, optional Temperature measuring range 0 - 250°C.
Speed measuring range 100 - 12000 U/min
Parameter settings CAN-Bus, RC-Bus oder Mobile Terminal Dimensions 57 x 62 x 12 mm. Weight 40g.
Temperature range-30°C to +85°C
INCLUDED:
+ PowerBox Engine Manager
+ 6x fixing screws
+ 4x rubber grommets and brass sleeves
+ Operating instructions in English and German
