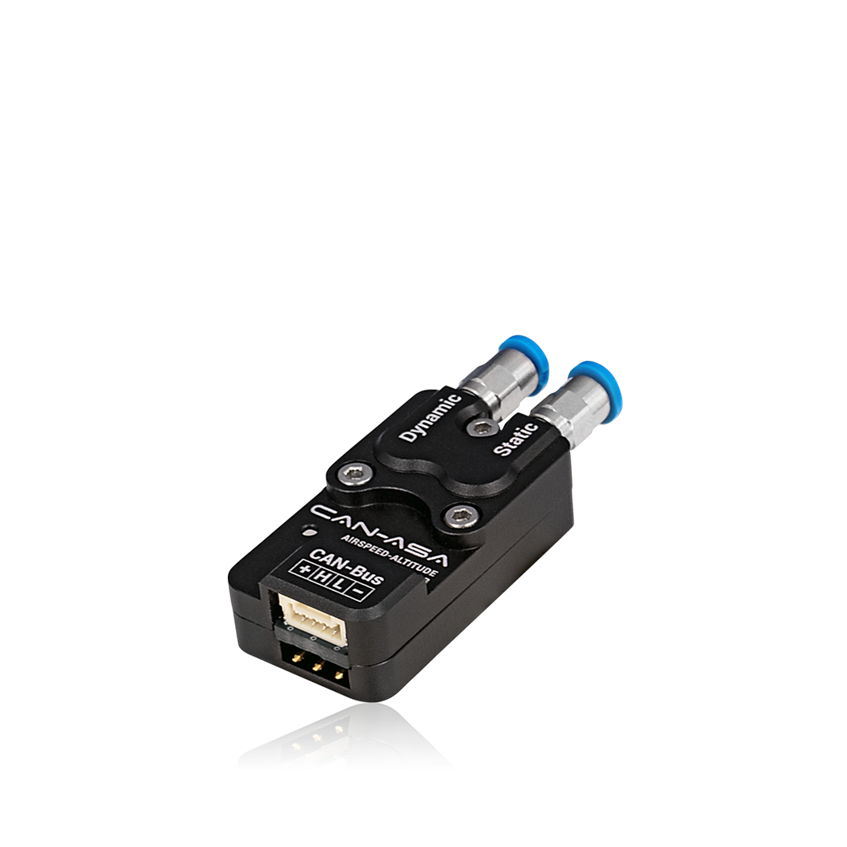

Powerbox CAN-ASA

The CAN-ASA is an airspeed and altitude sensor that works with two high-precision digital barometric sensors. The static pressure is used to calculate altitude and rate of climb. The speed is calculated from the difference to the dynamic pressure. This results in a large measurable speed range up to over 850 km/h and an altitude measurement with 100 mm relative resolution.
The CAN-BUS interface enables simple integration into all common flight computers. In addition, the most common RC telemetry protocols such as P²-BUS or EX-BUS can be operated in parallel with the CAN-BUS interface.
Two 3mm Festo connectors are installed for the connection to the pitot tube. The CAN-ASA can be updated.

Features

+ precise measurement of speed, altitude, climb rate and distance

+ two high-precision separate pressure sensors with the latest MEMS sensor technology

+ speed measurement up to approx. 850km/h

+ altitude measurement accurate to 10cm

+ high-precision climb rate measurement 0. 1m/s

+ fast digital filters for delay-free data acquisition without noise

+ CAN-BUS interface for easy integration

+ aluminum housing with two separate pressure chambers

+ Festo connectors suitable for 3mm Festo tubes

+ automatic detection of the optionally connected RC system

+ supported RC systems: PowerBox P²BUS, Jeti-EX, Futaba S.BUS2

+ works with all types of pitot tubes

+ can be updated with the Mobile Terminal

Operating voltage 4.0V - 9.0V

Current drain Power-on statemax. 32mA

Supported bus systems Drone-CAN,

PowerBox P²-BUS, Jeti-EX, Futaba S.BUS2Speedmax. 850km/h

Resolution Speed1km/h (ab 10km/h)

Resolution height0.1mDimensions45 x 19 x 9 mm

Weight14 g

Temperature range-40°C bis +85°C
